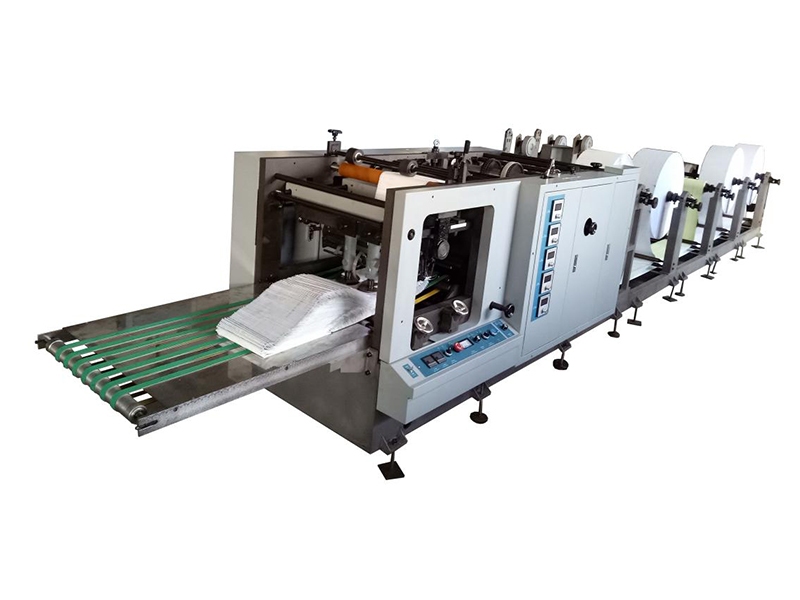

Continuous Form Paper Punching Folding Machine
Max. paper roll width: 500mm
Max. paper feeding width: 482mm
Max. unwind roll diameter: 1000mm
Paper weight: 40-120g/㎡
Paper core diameter: 76mm (3inch)
Magnetic powder: 5kg
Folded paper length: 7-15inch (Standard 11inch)
Machine speed: 5-150m/min
Power supply: three phase 380V/50Hz/2.2kW
- Variable frequency speed control, automatic web guiding unit and automatic tension control;
- Complete hole punching, creasing, slitting and folding in one pass;

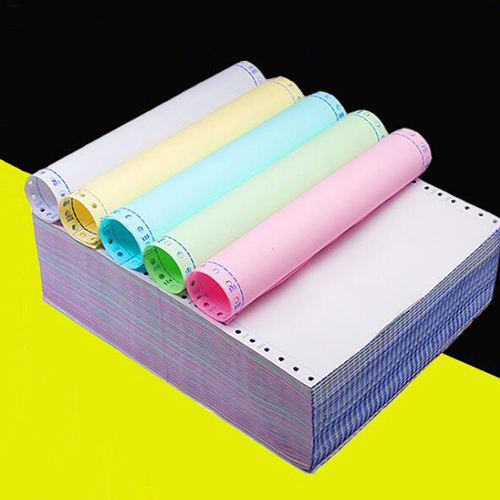

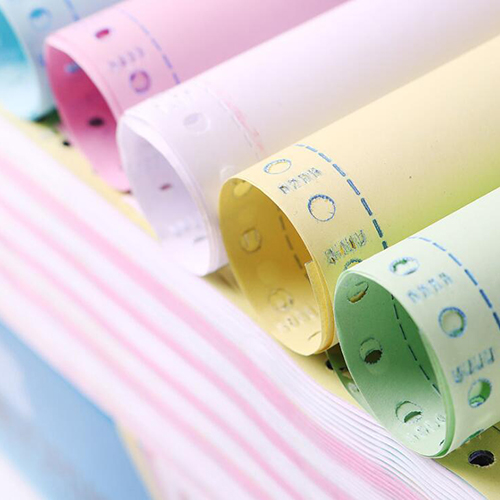

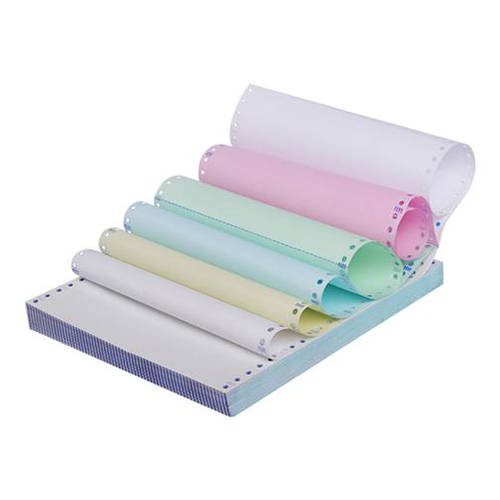

- Suitable for continuous form paper, carbonless paper and other similar paper of various sizes;
- Able to make single-ply or multi-ply paper according to customer’s needs;
This continuous form paper machine is constructed by using cast iron plate, featuring robust structure, stable transmission and low noise level. Equipped with automatic web guiding unit and automatic tension control, the machine ensures smooth running, easy operation, high hole punching precision, less paper waste and high efficiency, it is capable of accomplishing paper unwinding, hole punching, creasing, slitting and folding in one pass.
