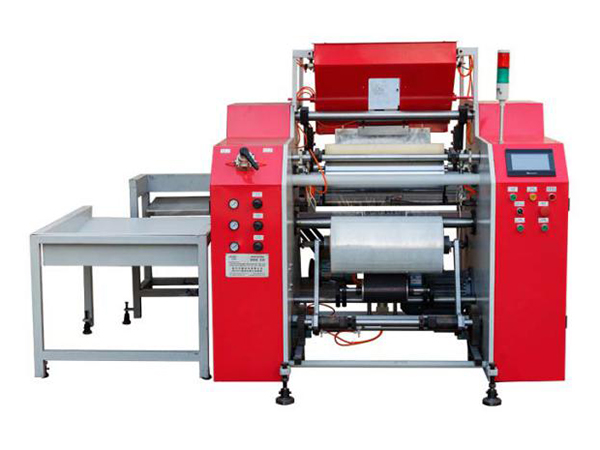

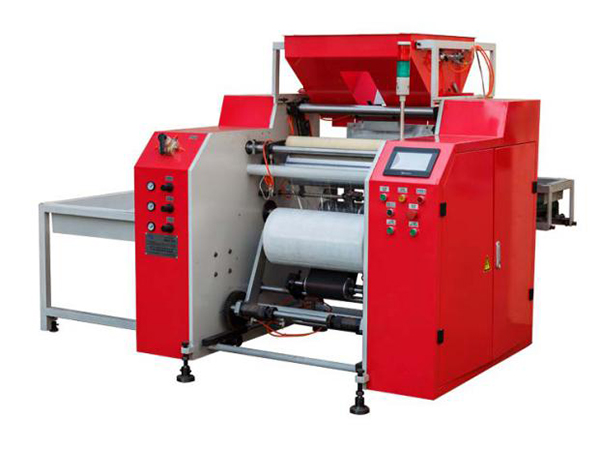

High-speed Stretch Film Rewinder
Model: PPD-18KG
Master roll: diameter ≤500mm, width 500mm
Finished roll: max. diameter 250mm
Film thickness: 8-50 micro
Unwinding paper core diameter: 76mm (3'')
Rewinding paper core diameter: 50/76mm or customized
Max. machine speed: 1200m/min
Motor power: 4.37kW
Voltage: 220/380/415V (optional)
Applications
This high-speed rewinder is used for rapid conversion of a master roll of stretch film to several smaller rolls with same web width, suitable for stretch film roll of a range 2kg-20kg.
- Variable frequency speed control, adjustable speed 0-1500m/min;
- Quick rewinding and roll changeover, high production efficiency;
- Fully automatic PLC system with touch screen control panel;
- Finished roll core diameter is available in 2inch, 3inch
- Timing belt is adopted for low noise, high speed and long service life;
WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
