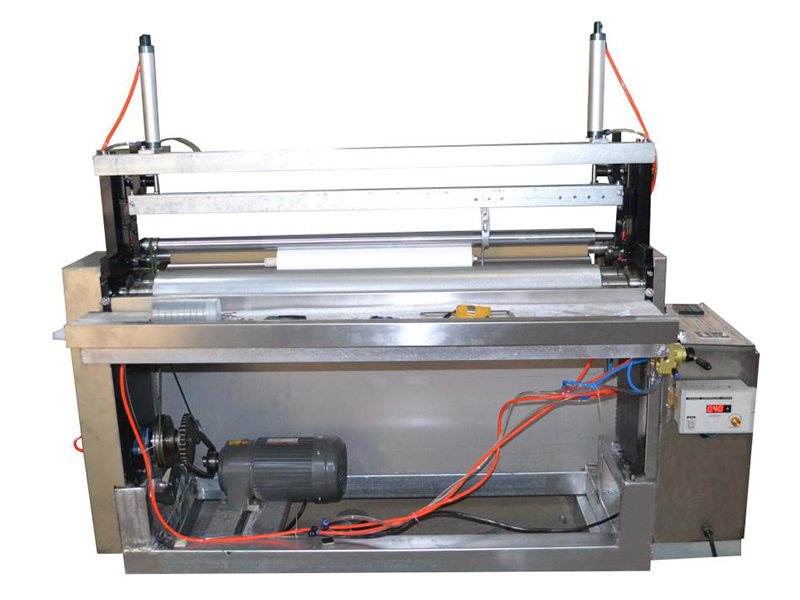

Nonwoven Winding Machine for Stencil Wiping Roll Production
Model: PPD-SMT600
Master roll: diameter ≤1200mm, width 600mm
Paper core diameter: 76mm
Max. rewind width: 600mm
Rewind diameter: 8-40mm adjustable, or customized
Rewind accuracy: ≤1mm (standard configuration)
Rewinding speed: 80-120m/min
Power supply: 220V 50Hz
Power: 0.75kW
Machine weight: 350kg
Applications

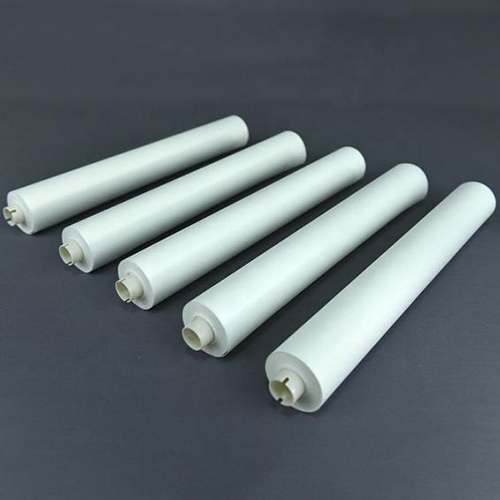

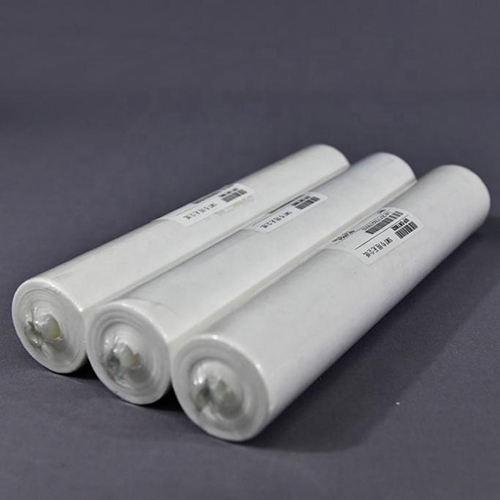

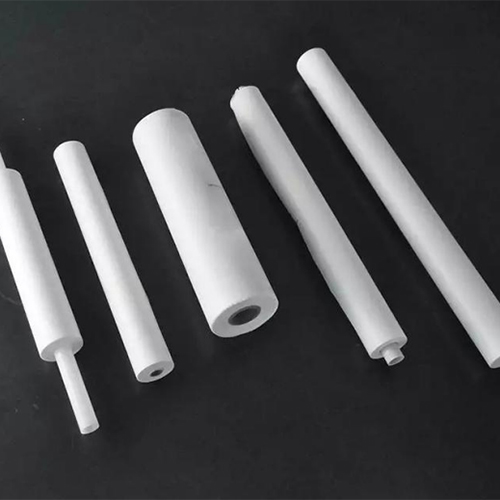

This nonwoven winding machine is specially used in manufacturing SMT stencil cleaning rolls, it is designed to convert slit rolls of dust free paper and nonwoven fabric into smaller rolls of industrial cleaning paper.
- Variable frequency speed control, production speed is adjustable;
- Unwinding unit uses air expanding shaft, and the tension is easily controlled using electromagnetic powder brake;
- Rewinding unit can be fitted with extremely small diameter paper core, core diameter can be flexibly adjusted for easy loading and unloading;
- Automatic edge trimming and finished product counting;
- Rewind tension adjusting mechanism;
- Optional: automatic web guiding system;
WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
