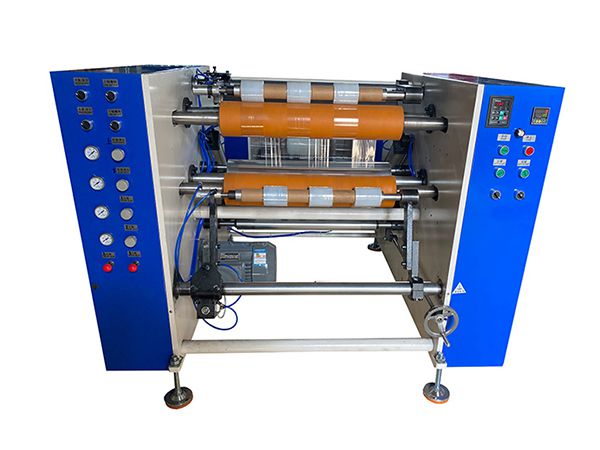

Slitter Rewinder, PPD-ASSR500
Stretch Film Rewinding
Model: PPD-ASSR500
Master roll width: 500mm
Master roll outside diameter: max. 400mm
Master roll inside diameter: 76mm (3'')
Web width after rewinding: 50mm-500mm
Rewinding roll diameter: max. 200 mm
Finished roll inside diameter: 1.5, 2, 3inch (optional)
Machine speed: max. 600m/min
Paper core loading: manual
Power supply: 220/440/415/380V, 50/60 Hz, 3-phase
Motor power: 1.5 kW
Note: The size can be customized.
This 2-shaft slitting rewinding machine is a newly-designed model for processing PE cling film, PVC cling film, stretch film, LLDPE film, HDPE film, etc. Air expanding shaft can be used to provide excellent tension control, ensuring superior performance for the winding application. In addition, the air expanding shaft is suitable for use in slitting, winding and rewinding operations.
Features- Available width: 25, 50, 100mm and more, max. width up to that of master roll
- The paper core diameter can be 1.5, 2, 3 inches and more.
- The use of rewinding shaft varies from the core diameter, mandrel for core diameters of 1.5 and 2 inches, and air shaft for core diameter of 3 inches.
- This slitter rewinder features flexible adjustment, speed control with frequency converter, low noise, and high level of automation.
