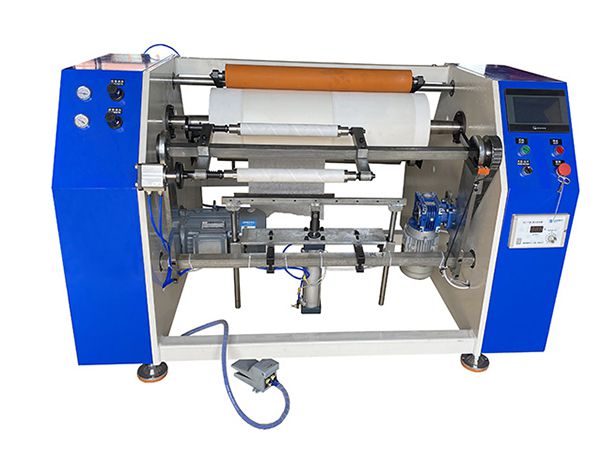

Slitter Rewinder, PPD-2BPR450
Silicone Baking Paper Rewinding
Model: PPD-2BPR450
Master roll width: ≤450mm
Master roll inner diameter: 76mm
Master roll outer diameter: ≤600mm
Finished roll width: ≤450mm
Finished roll inside diameter: 30/35/38mm
Product length: 3-300mm
Max. machine speed: 300rpm/min
Power supply: 220/380/415/440V, 50 Hz, 3-phase
Total power: 2.2kW
Note: The size can be customized.
This slitter rewinder is used for processing various materials including paper, silicone coated paper, PE coated paper, wax paper, aluminum foil. This 2-in-1 machine is suitable for applications including converting jumbo rolls into small rolls, and rewinding on the rolls. In addition, this converting machine is specially designed with a silicone rubber roller for rewinding silicone coated paper.
Features- The slitter rewinder features fully automatic PLC control system, speed control with frequency inverter, and touch screen.
- Designed with 2 shafts for automatically changing paper core, ensuring high working efficiency
- Quick change for core chucks with different sizes
- Automatic slitting and counting

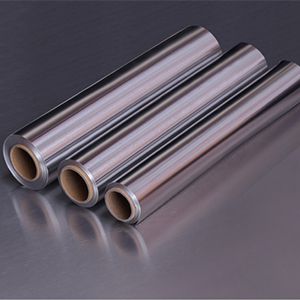

- Suitable for baking paper, silicone coated paper, PE coated paper, wax paper, aluminum foil, etc.
