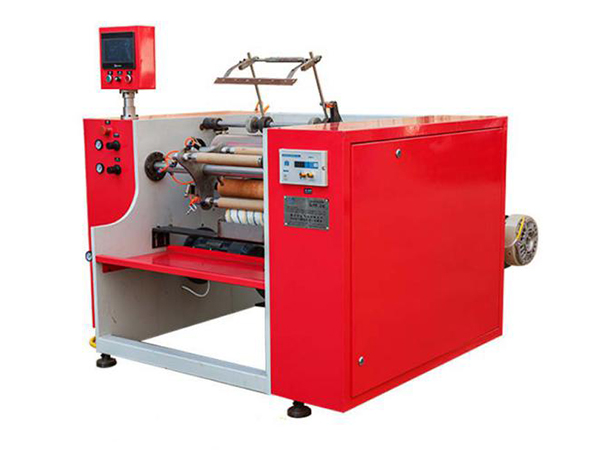

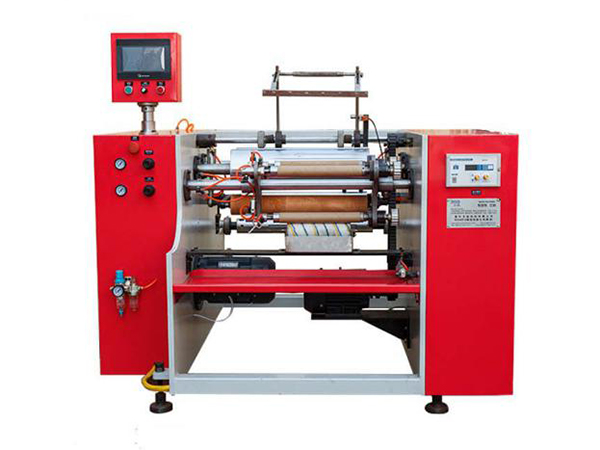

3-Shaft Rewinder for Kitchen Foil/ Baking Paper

Model: PPD-3SHBR450
Master roll width: 450mm
Finished roll width: 450mm
Max. product length: 150m
Unwinding paper core diameter: 3 inch/6 inch (optional)
Rewinding paper core diameter: 30mm/35mm/38mm (optional)
Rewinding speed: 600m/min
Voltage: 220/380/415V, three phase (optional)
Power: 2.2kW

Request a Quote

Applications
3-shaft rewinder is constructed to convert a parent roll of aluminum foil into small rolls which are suitable for domestic kitchen use, it is also applicable to siliconized paper and baking paper. With high flatness of finished rolls, this 3 shaft rewinding machine is well welcomed by food packaging companies.

• Suitable for rewinding rolls with various length;
• Variable frequency control with touch screen operation, easy length setting, automatic counting of product length and roll quantity;
• Can be operated by single person;
• Three stations of automatic roll changing with turnover, high production efficiency;
• Air expanding shaft + magnetic powder brake for web tension control, ensuring superior look of finished rolls;
