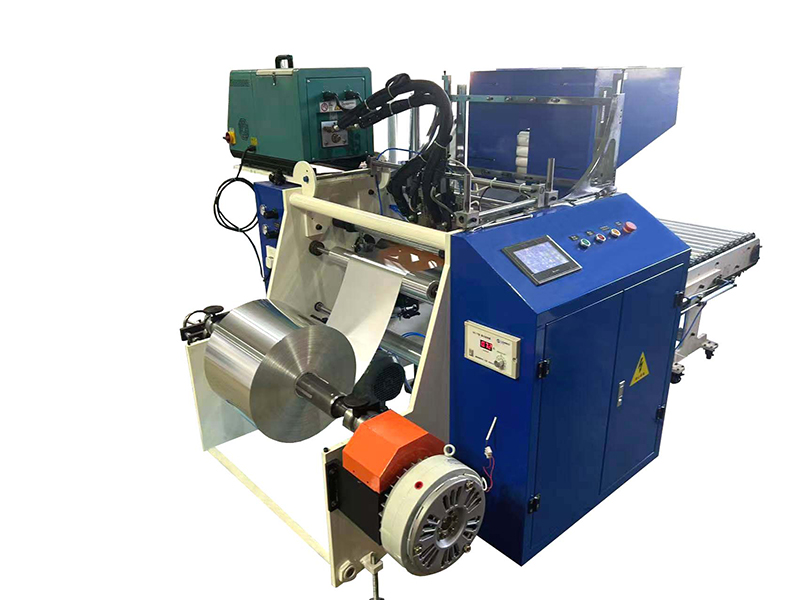

Automatic Single Shaft Aluminum Foil Rewinder

Model: PPD-ASAFR450
Max. web width: 450mm
Unwind core diameter: 76/152mm (3/6 inch) (optional)
Max. roll weight: 250kgs
Max. rewinding width: 450mm
Rewind core diameter: 30/35/38/40mm (optional)
Max. rewind diameter: 100mm
Max. rewinding length: 500m
Speed: 0-100m/min
Voltage: 220/380/415/440/450V, 50Hz (optional)

Request a Quote

Applications
The automatic single shaft aluminum foil rewinder is specially designed for rewinding long-length aluminum foil rolls. The rewinder adopts a single-shaft configuration and is controlled by a touchscreen, PLC system, and inverter. It features automatic functions, including glue spraying, rewinding, tension control, meter counting, and roll changing, offering a high level of automation and ease of operation.

Features

Adjustable rewinding length, such as 5m, 10m, 50m, 100m, 200m, 300m, and up to a maximum of 500m
The rewinder is equipped with a roller conveyor to automatically receive and transfer finished rolls
