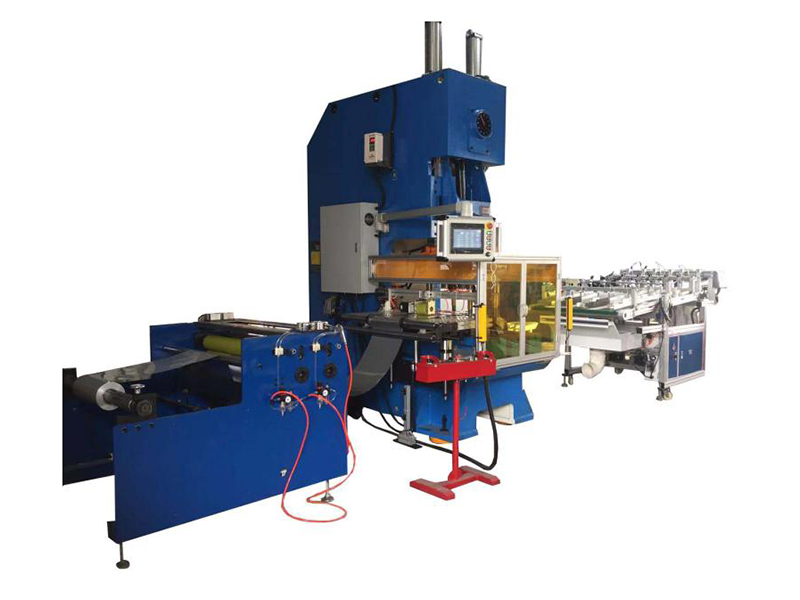

Servo Press Line for Aluminum Foil Container Production

Model: PPD-A63T
Raw material: aluminum foil 8011/8006/3003/3005
Foil thickness: 0.030-0.280mm
Max. foil coil width: 850mm
Max. foil coil diameter: 1000mm
Coil core diameter: 76mm (152mm optional)
Machine speed: 40-75 strokes/min
Total power: 17kW
Air flow: 0.5-0.8 MPa, 0.4m3/min
Mould size: 1100×900×480mm
Electric drive for mould adjusting: 0.5kW
Worktable size: 1100×900mm
Voltage: 380V, 50Hz

Request a Quote

Applications

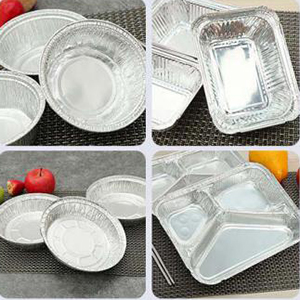

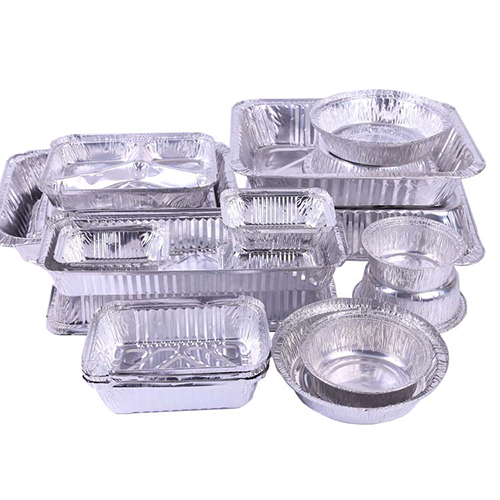

Servo press line has been designed for production of disposable aluminum foil containers, trays and dishes. This alu foil container production line mainly consists of automatic feeder, automatic forming press (45T/63T), aluminum foil container moulds, and automatic collection system for both finished products and scrap materials.

• Servo driven feeder, automatic tension control, suitable for thin aluminum foil;
• Foil coil position can be easily adjusted, reducing aluminum foil waste;
• Improved design of oil tank, efficiently control oil consumption within 5 liter per ton of aluminum foil, 50mic;
• Smart PLC system, a large number of mould specifications and mould adjustment data can be stored;
• Quick mould changeover, mould changing can be achieved by one person within 15 minutes;
• With continuously developed technology, production noise level is significantly lowered;
