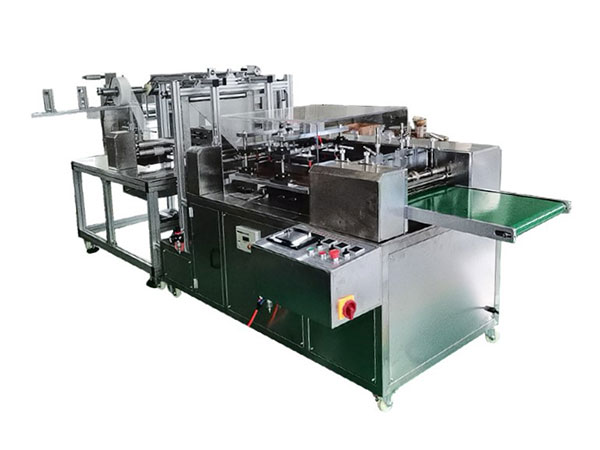

4 Side Seal Packaging Machine, PPD-APGP50
Vaseline Gauze Pad Packaging

4 Side Seal Packaging Machine, PPD-APGP50

Model: PPD-APGP50
Gauze size: 100mm×100mm, or customized
Bag size: 150×160mm, or customized
Output: 30-50 bags/min
Film roll outer diameter: ≤350mm, width 150mm, paper core diameter 76.2mm
Packaging material: gauze rolls, 20-40g/㎡
Gauze roll: diameter≤600mm, width 100mm, paper core diameter 76.2mm
Film laminated paper roll: diameter ≤400mm, width 130mm
Power supply: 220V 50Hz 5kW

Request a Quote
  • 4 Side Seal Packaging Machine, PPD-APGP50
  • 4 Side Seal Packaging Machine, PPD-APGP50

Applications

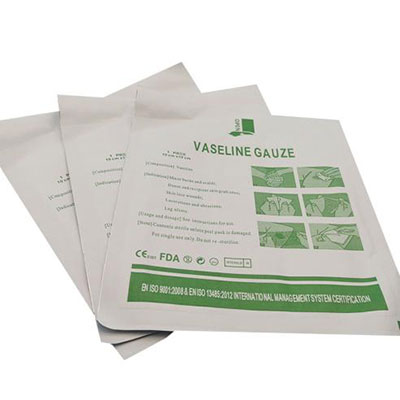

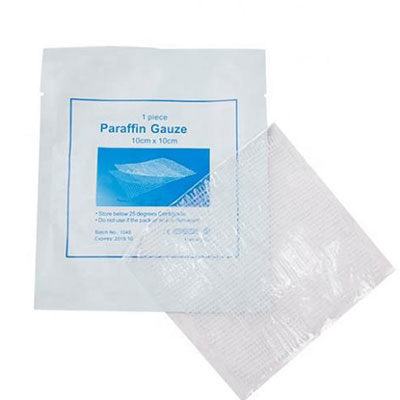

This 4 side seal packaging machine is designed for the packaging of disposable gauze bag products, especially Vaseline gauze pad.

Features
  • Servo motor and PLC control ensure accurate material cutting, precise film feeding, stable material loading and bag cutting;
  • Dual web unwinds allows for paper+film or paper+paper bag making;
  • Synchronous heat sealing system offers even and stable sealing temperature, and good sealing effect;

Production Process
Feeding gauze roll, paper roll and packaging roll film into the machine → Soak gauze in Vaseline → Laminated with paper on both sides → Cut → Gauze piece output and bagging → Packaging the gauze pieces → Seal → Get the finished product

WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
