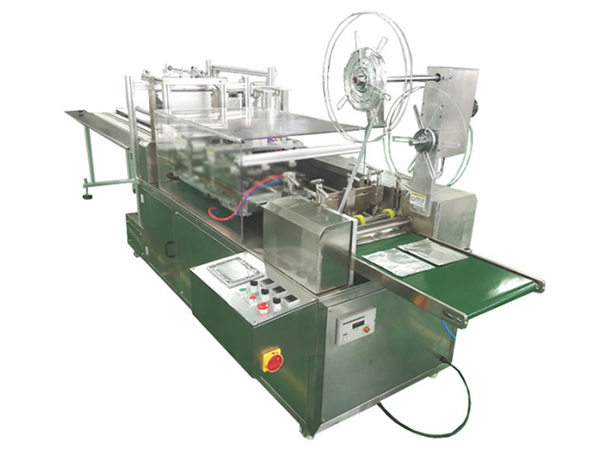

4 Side Seal Packaging Machine

Model: PPD-4SP80
Bag size: 290mm×130mm
Output: 60-80 bags/min
Packaging material: paper/aluminum film, paper/PE film, aluminum/PE film, aluminum coated film
Film roll: diameter ≤350mm, width ≤552mm
Power supply: 220V 50Hz
Motor power: 2.2kW
Heater power: 3.3kW

Request a Quote

Applications
4 side seal packaging machine is widely used to package a variety of products into sachets and pouches, such as face masks, cards, medical dressings, cooling gel patches, heat patches, transdermal patches, foot pads, eye patches, hotel supplies, pedicure knife sets, surgical gloves, etc.

• 4-axis servo control system is adopted to provide automatic and precise control of film feeding, stable material loading and bag cutting, enabling the bag size precision to be highly guaranteed;
• bag size can be changed flexibly and easily;
• Advanced in-feed conveyor unit ensures that the materials are stably filled into packaging sachets and pouches;
• Automatic edge trimming system with high quality cutting tools;
• Individual mechanism for cross sealing and cross cutting, high seal performance;
• Dual channel heat sealing system has ability to accommodate various packaging materials with different thickness, providing even and stable sealing temperature, as well as good sealing effect;
