Semi-automatic Stretch Film Slitter Rewinder, PPD-2SH500/PPD-4SH500

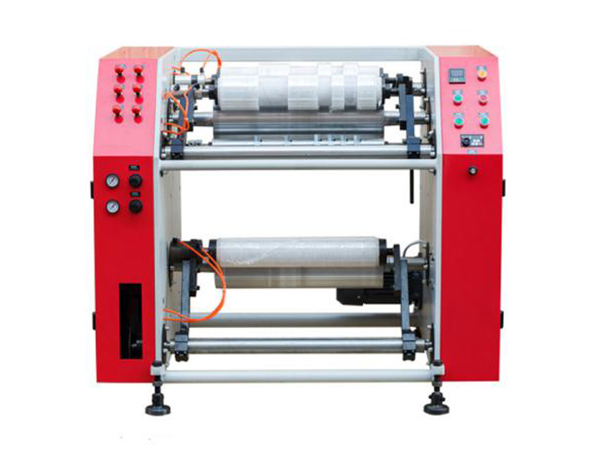

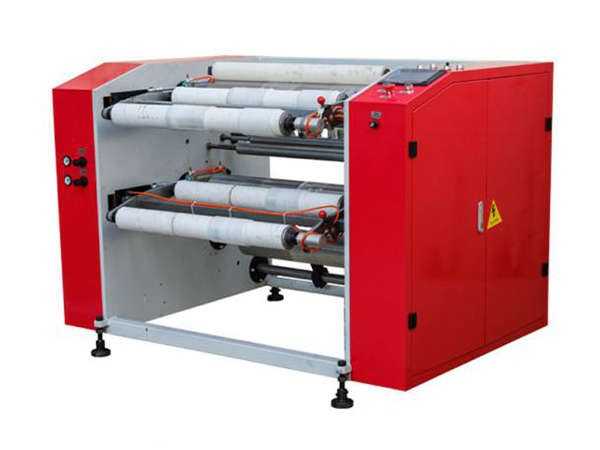

Semi-automatic Stretch Film Slitter Rewinder

Model: PPD-2SH500/PPD-4SH500
Master roll: diameter 400mm, width 500mm

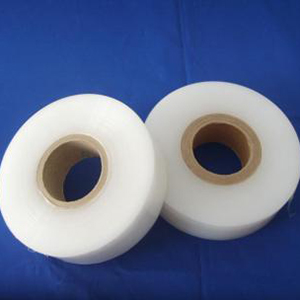

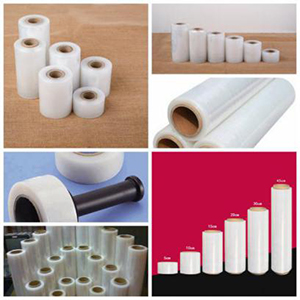

Finished roll: diameter 150mm, width 50mm-500mm
Unwinding paper core diameter: 3 inch
Rewinding paper core diameter: 1.5/2/3 inch
Max. machine speed: 600m/min
Voltage: 220/380/415V (optional)

Request a Quote

Applications
Semi-automatic stretch film slitter rewinder has both functions of slitting and rewinding. It is capable of converting large diameter roll of stretch film into several smaller rolls with same web width, and also able to divide the master roll into narrower rolls with various web width. Through the slitting and rewinding process, web wrinkles and distortions can be significantly eliminated, therefore the flatness of web can be greatly improved.

Features

Two stations or four stations for slitting and rewinding are optional to meet customer’s specific needs;
PLC + meter counter + invertor control, precise length measurement;
