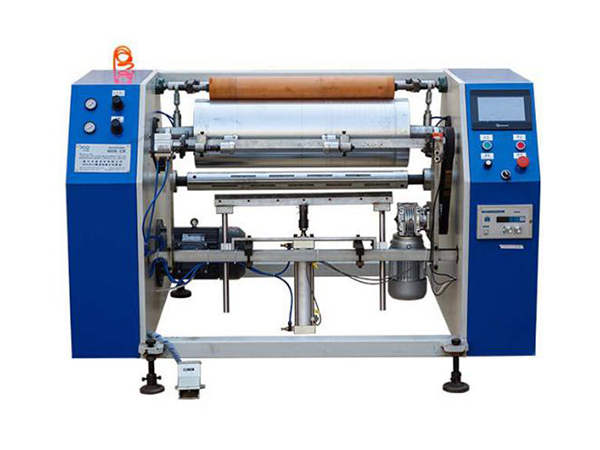

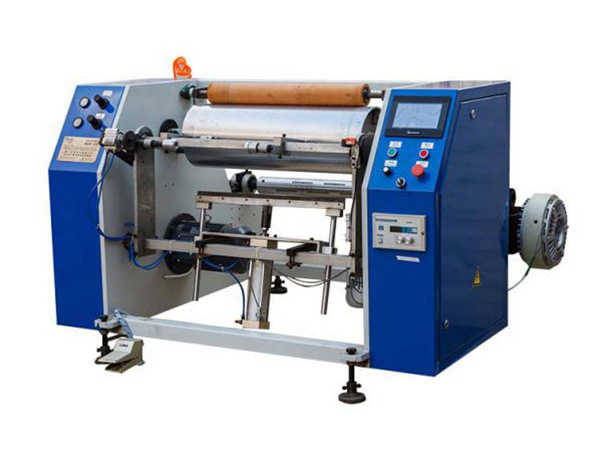

2-Shaft Rewinding Machine, PPD-2SHSP450

2-Shaft Rewinding Machine for Baking Paper/ Wax Paper

Model: PPD-2SHSP450
Master roll: diameter ≤600mm, width ≤500mm
Material thickness: 0.0085-0.025mm
Unwinding paper core diameter: 76mm
Rewinding paper core diameter: 25mm/30mm/35mm (optional)
Rewinding speed: 300rpm/min
Finished roll width: 500mm
Product length: 2m-300m
Motor power: 2.2kW
Voltage: 380V, three phase

Request a Quote

Applications

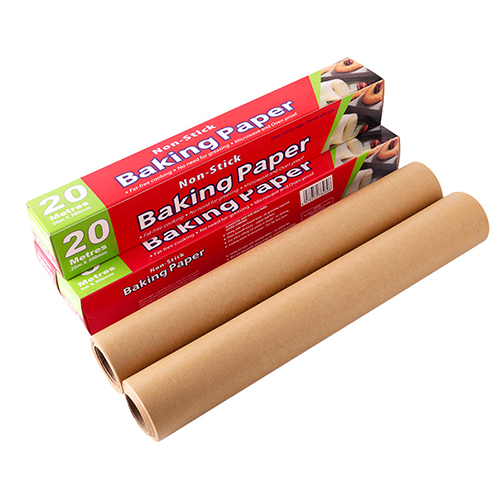

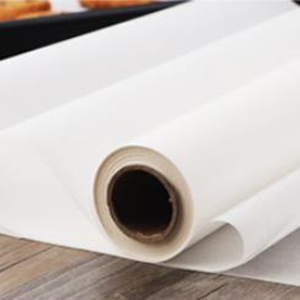

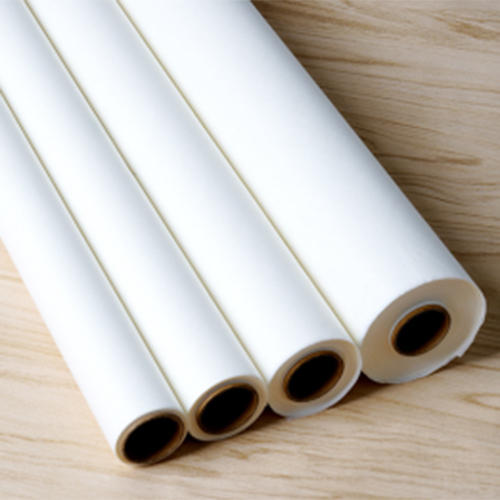

2-shaft rewinding machine is primarily designed for converting master roll of siliconized paper or baking paper into smaller rolls, it is widely used in the fields of food packaging and baking. The 2 shaft rewinder has features of stable performance, easy to use, low maintenance cost and high efficiency.

Features

Manual core loading, adhesive applying;
Air expanding shaft for clamping master roll;
Variable frequency speed control, speed will be displayed on control panel;
Automatic meter counting unit, product length can be set and displayed through PLC control panel;
Ergonomic design for easy operation;
High speed rewinding and roll changing;
Automatic roll changeover, PLC control, touch screen operation;

WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
