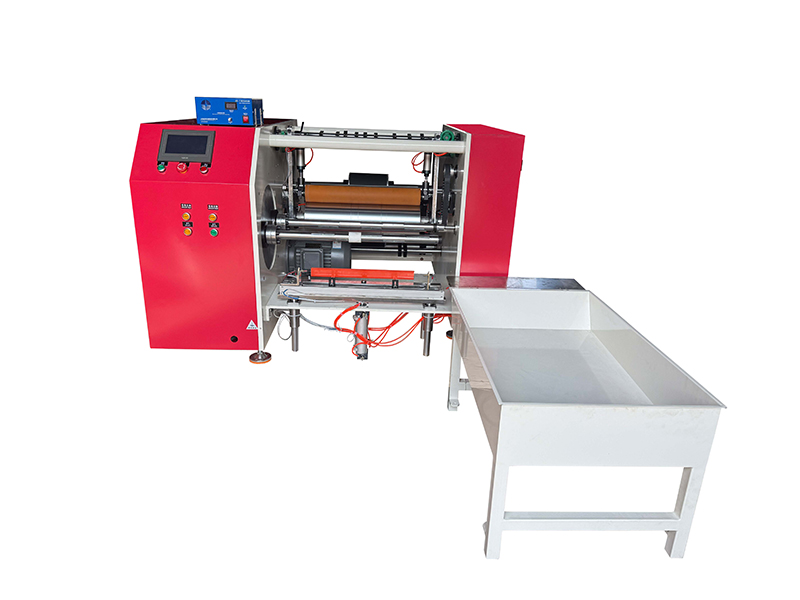

Duplex Stretch Film Slitter Rewinder (Automatic Slitting)
Model: PPD-SFASR500
Max. web width: 500mm
Unwind core diameter: 76mm (3 inch)
Max. unwind diameter: 400mm
Slitting width: 50-500mm
Rewind core diameter: 50/76mm (2/3 inch)
Max. rewind diameter: 180mm
Slitting speed: 600m/min
Voltage: 220/380/415/440/450V (optional)
Applications

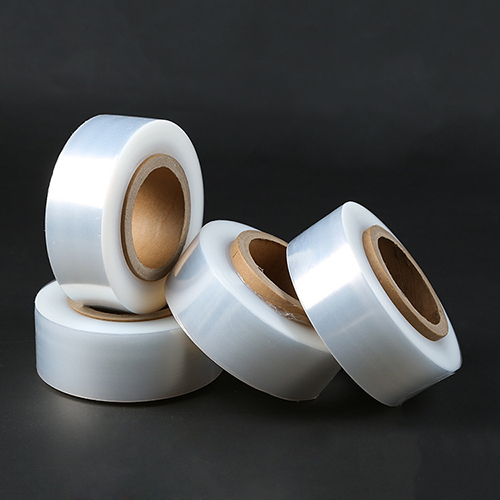

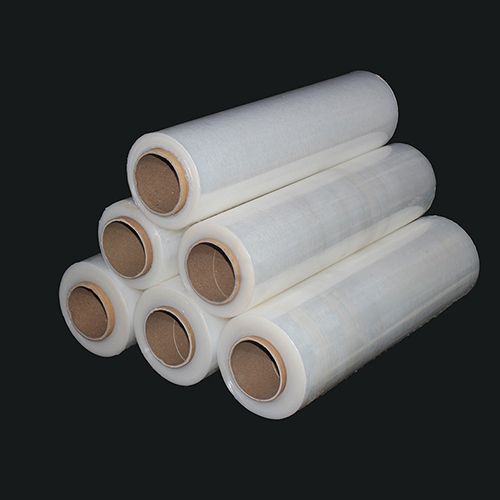

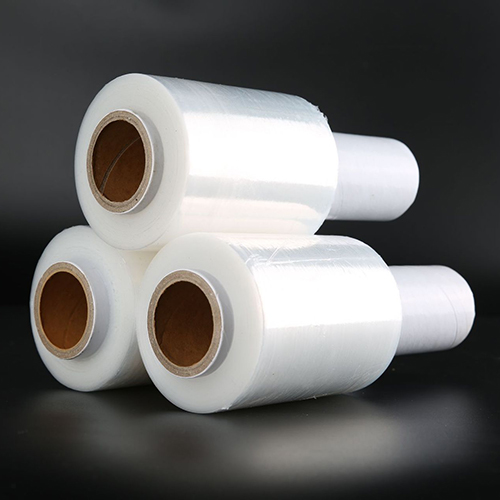

Our newly developed duplex stretch film slitter rewinder is designed to efficiently slit and rewind jumbo rolls of stretch film into smaller hand rolls and machine rolls. It features a user-friendly touchscreen and PLC control, allowing you to set the rewinding length directly on the screen for simple and convenient operation.
- Adopts a duplex rewinding system for automatic slitting and rewinding, with a maximum speed of up to 600m/min
- Integrates slitting, rewinding, automatic counting, automatic turnover, automatic cutting after rewinding, and automatic finished roll discharge
- An automatic electrostatic adsorption system applies a controlled electrostatic field to the stretch film, allowing the film to fit tightly to the paper core and helping reduce wrinkles and air bubbles
- The rewinding shaft can be configured as a mandrel type or an air shaft according to requirements
