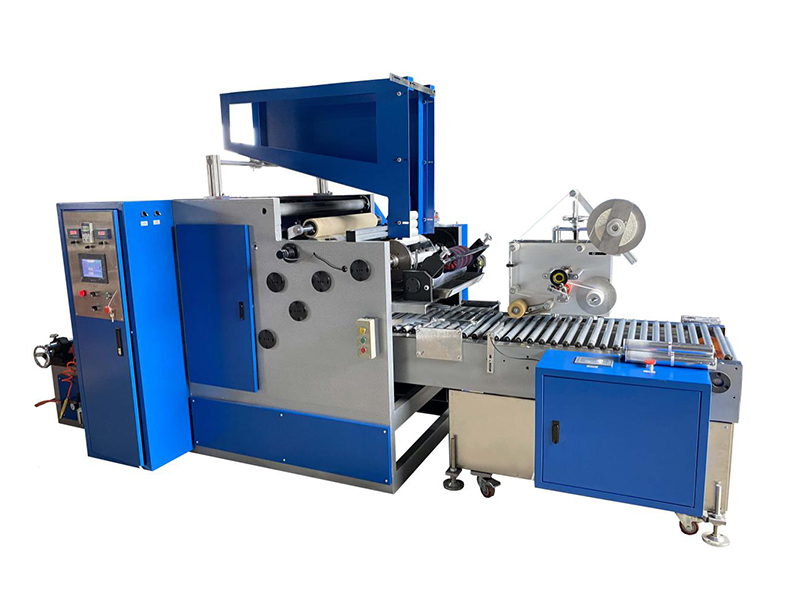

Aluminum Foil Rewinding Machine with Labeling Unit
Model: PPD-AARL450
Master roll: diameter ≤800mm, width ≤450mm
Finished roll: max. width 450mm
Unwinding paper core diameter: 76mm
Rewinding paper core diameter: 25mm/30mm/35mm or customized
Machine speed: 2.5m/s
Product length: 2-150m adjustable
Voltage: 380V, three phase
Applications
This aluminum foil rewinding machine is equipped with automatic labeling unit, which can automatically apply labels on finished rolls, thus eliminating the need for manual labeling and greatly reducing labor cost. Exceptional stainless steel roller conveyor ensures smooth conveying of finished rolls.
- Stainless steel roller conveyor, ensuring smooth conveying of finished rolls without damage;
- 4 shaft automatic adhesive applying, automatic paper core changing and automatic labeling, providing high efficiency with reduced labor cost;
- Variable frequency speed control, speed will be displayed on control panel;
- Automatic meter counting unit, product length can be set and displayed through PLC control panel;
