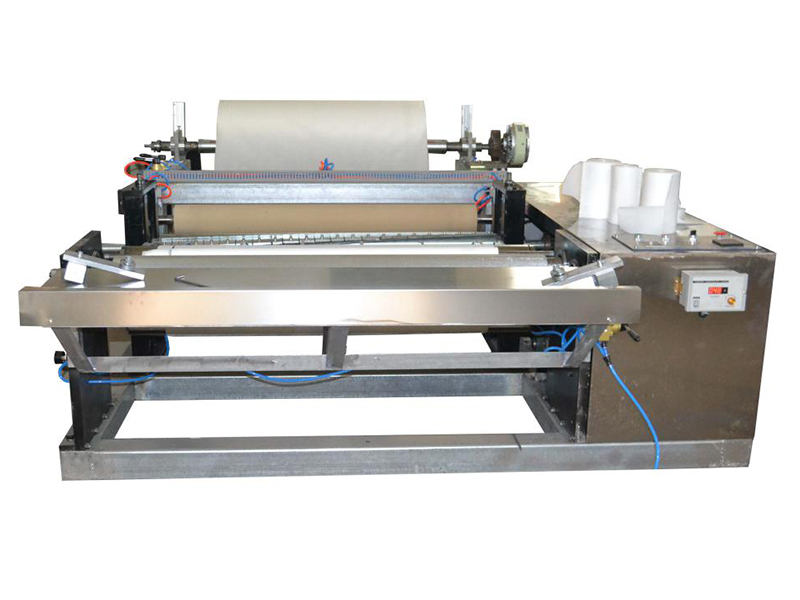

Coreless Non-woven Slitter Rewinder (with Perforating)

Model: PPD-CNWS1800
Finished roll: diameter ≤300mm, width 250mm
Distance between perforations: 100-300mm adjustable
Pitch of holes: 1mm
Length of perforations: 4mm
Nonwoven roll: 20-120g/㎡, diameter ≤1200mm, width 1800mm
Paper core diameter: 76.2mm (=3")
Cutting speed: 60-150 m/min
Power supply: 380V 50HZ, 3.7kW
Machine weight: 2600kg
Machine dimensions (L×W×H): 3600mm×2900mm×1500mm

Request a Quote

Applications
The coreless nonwoven fabric slitter rewinder is used for dividing large jumbo roll into several small rolls with various sizes. It is designed with perforating function which can make nonwoven roll to be transversely perforated into individual segments with uniform size for easy tear-off. A nonwoven fabric roll can be perforated into 30, 60, 80, 120 or more segments as per your actual needs.

• Integrating perforating, slitting, rewinding functions in one machine;
• Able to produce coreless nonwoven rolls or nonwoven fabric rolls with small paper cores;
