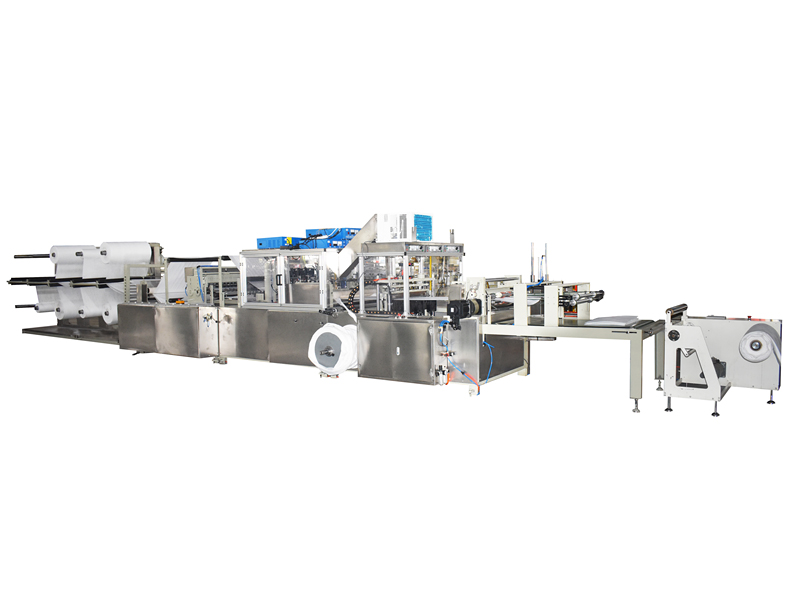

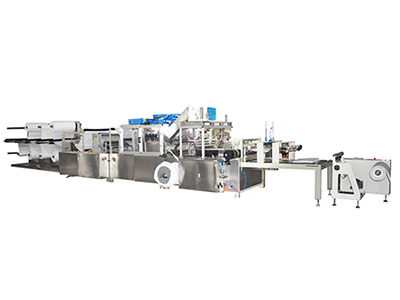

Automatic Non-Woven Filter Bag Making Machine, PPD-AFBM650
Model: PPD-AFBM650
Master roll width: max. 650mm
Master roll diameter: max. 900mm
Bag size: L160-1200mm×W200-600mm
Unwind inner diameter: 3 inches
Speed: 5-30pc/min
Bag styles: flat bag and gusset bag
Rated voltage: 380V/50Hz
Power: 15kW
Applications

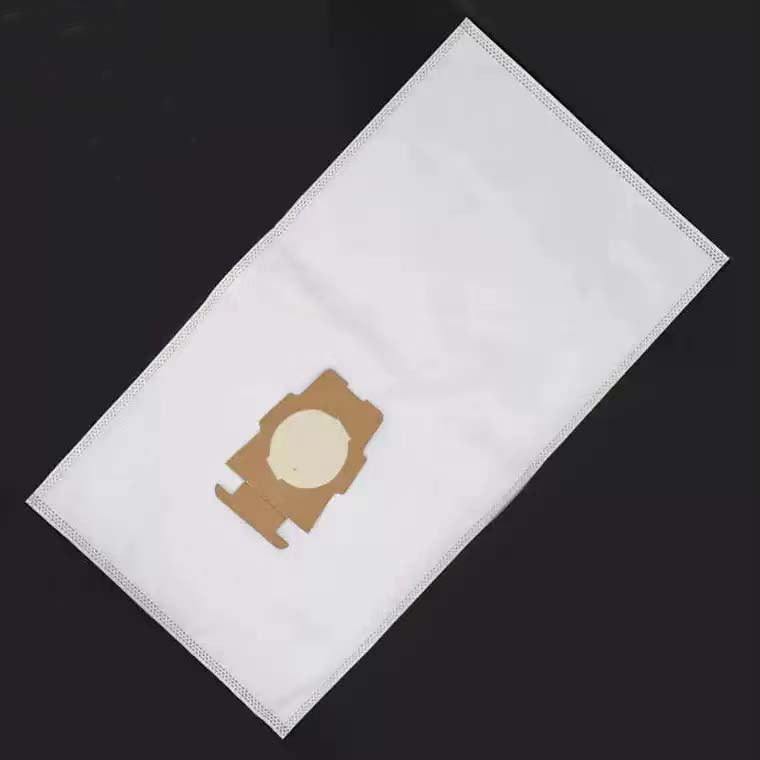

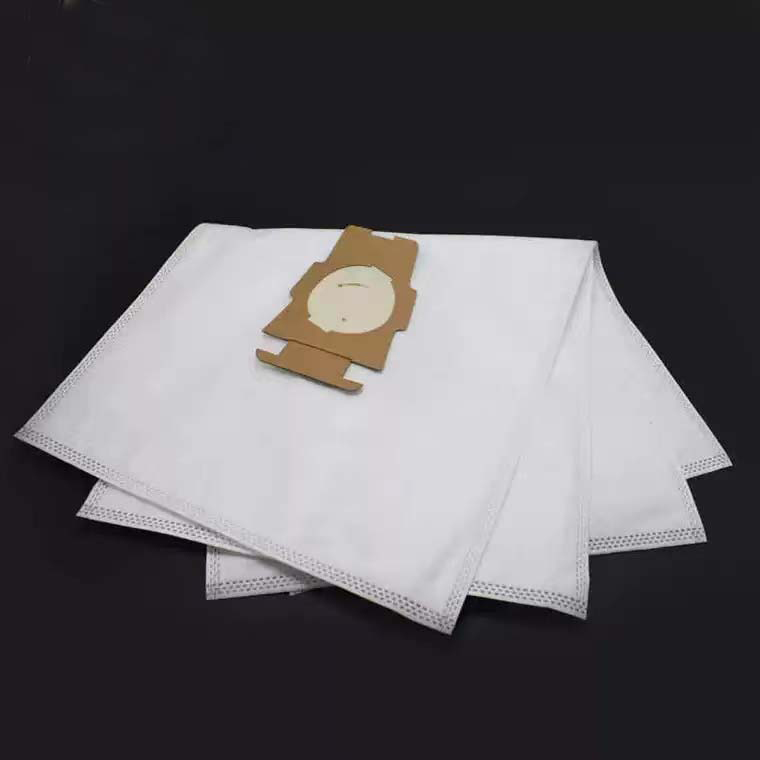

The automatic non-woven filter bag making machine is fabricated to produce various filter bags, such as flat bags and gusset bags. The produced filter bags are featured by smooth burr-free edges with reliable bonds.
- This automatic non-woven filter bag making machine allows for adjustment of bag width within a range of 200-600mm, and bag length as per customer needs;
- Automatic waste rewinding unit facilitates waste collection and stacking operations;
- Automatic switching between color mark and cut-to-length modes;
- Touch screen, PLC control, servo motor, photo eye tracking, ultrasonic bonding and rotary cutting are all included in this automatic non-woven filter bag making machine, making operation much easier;
WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
