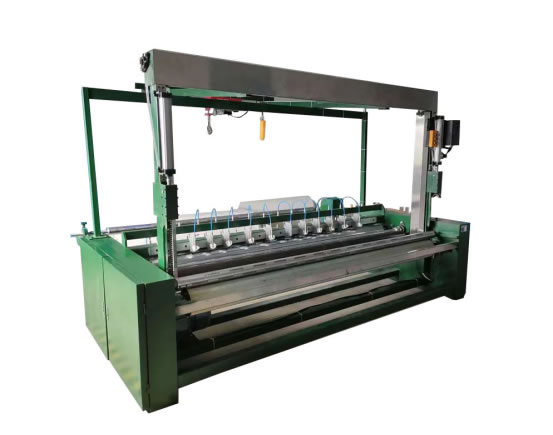

Gauze Slitting Machine
Model: PPD-GSM2200
Unwinding inner diameter: 76mm
Unwinding outer diameter: max.1000mm
Rewinding inner diameter: 76mm
Rewinding outer diameter: max. 680mm
Number of blades: 10pcs
Machine speed: 5-150m/min
Power: 5.5kW
Voltage: 380V, 50Hz
Applications

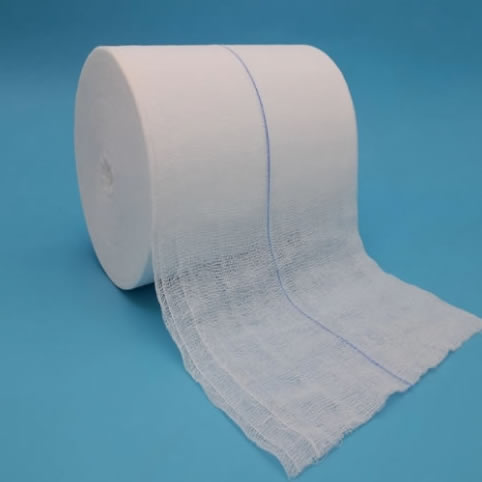

The gauze slitting machine is primarily used for slitting wide rolls of gauze into multiple smaller rolls of desired widths.
- The unwinding unit uses a 3-inch pneumatic (air) shaft and supports roll diameters up to 1000 mm.
- Gauze slitting machine features a tension magnetic powder brake.
- The rewinding unit also uses a 3-inch air shaft, with a maximum rewinding diameter of 1000 mm, ensuring clean, consistent roll formation.
WG Scientech specializes in manufacturing packaging and converting machines. Our range of packaging systems includes form fill seal machine, pouch making machine, flow wrap machine, shrink wrap machine and more. We are able to provide flexible packaging solution tailored to your industry no matter it is used for food packaging, medical packaging, or hygiene packaging. In addition to our packaging machinery, WG Scientech also delivers reliable web converting equipment and flexographic printing machine to solve customers’ specific needs of log slitting, roll to roll rewinding and web printing. We deliver on our promise to earn the ongoing trust of our customers.
