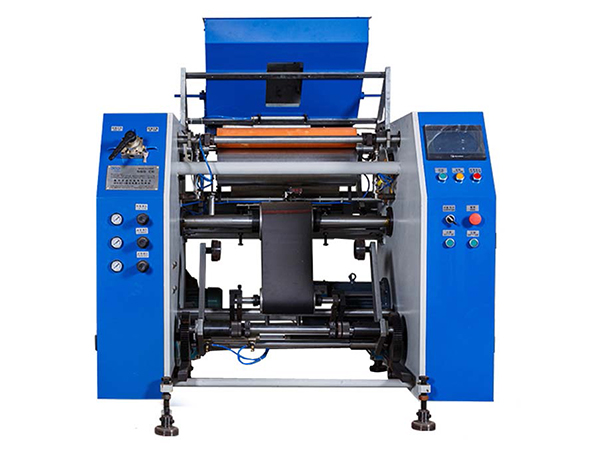

Cling Film Rewinding Machine, PPD-ARW500

Model: PPD-ARW500
Master roll: diameter ≤475mm, width ≤500mm
Finished roll: diameter ≤300mm, width ≤500mm
Unwinding paper core diameter: 3 inch
Rewinding paper core diameter: 1.5/2/3 inch
Max. rewinding speed: 900m/min
Power supply: 220/380/415V 3PH
Power: 4.37kW
Machine dimensions: 1550×1550×1750mm
Machine weight: 850kg

Request a Quote

Applications
The rewinding machine is designed for converting PE cling film, PVC cling film, stretch film, industrial film, food wrap film, etc. Coupled with film length control, the film rewinding machine can automatically accomplish quick roll changing, rewinding, cutting and out-feeding when the film length reaches the set value. Two or three rewinding machines can be simultaneously operated by one person, greatly reducing the labor cost.

Features

Variable frequency speed control, adjustable speed 0-900m/min;
Quick rewinding and roll changeover, high production efficiency;
PLC + HMI + Inverter control, high automation;
HMI operator interface, easy to use and convenient to check machine failure;
Automatic loading, core changing, cutting and out-feeding;
Conveyor belt is optional;
