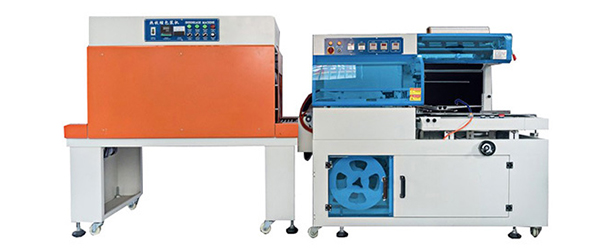

Shrink Packaging Machine

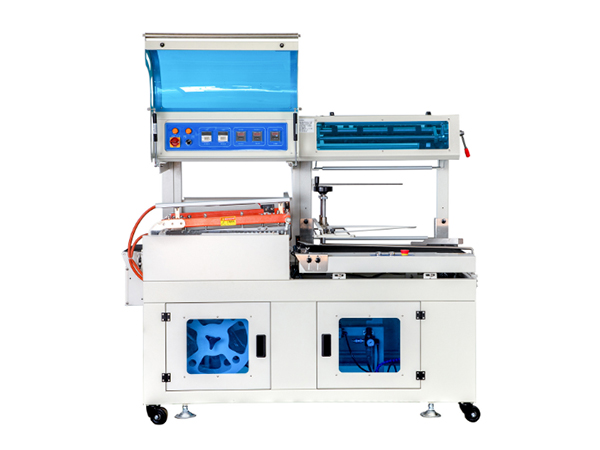

Shrink packaging machine combines an automatic L-bar sealer with a matching shrink tunnel. It can be used as stand-alone machine or added into your existing production lines.
This shrink packaging machine can be used as stand-alone machine or added into your existing production lines.
Model: PPD-450
Usable film: POF/PE film
Sealing speed: 15-30pcs/min
Max. package size (L+H): <500mm (H<170mm)
Max. package size (W+H): <400mm (H<170mm)
Sealing bar size: 550mm×450mm
Power supply: 220/50-60HZ
Power: 1.35Kw
Machine dimensions (L×W×H): 1650×800×1450mm
Machine weight: 300kg
- Photoelectric sensor is used to automatically detect incoming product;
- Simply place the product onto the sealer, and begin feeding center folded film to wrap around the product by sealing three sides of the bag;
- PID controlled digital temperature control provide accurate and consistent sealing temperature, which can be flexibly adjusted;
- PTFE coated sealing blade is non-stick and resistant to high temperature;
- Built in alloy steel construction, ensuring a robust sealing structure without deformation;
- Automatic feeding of products, the package length can be automatically adjusted by photoelectric sensor;
- Organic glass protective hood with automatic alarming function greatly increase operation safety;
- Film is turned inside out in a 90° manner, providing an efficient production flow;

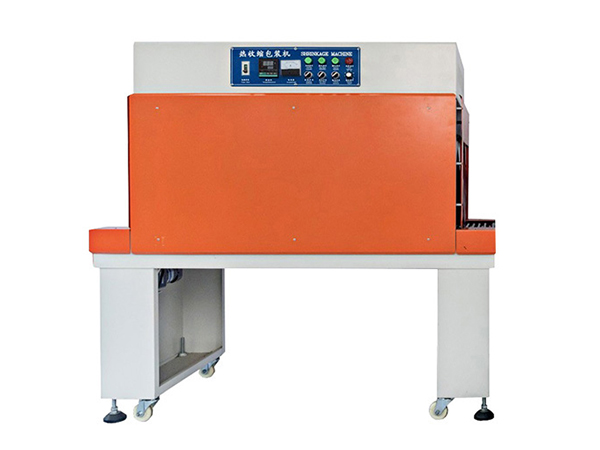

Model: PPD-4525
Shrink film: POF film
Tunnel dimensions (L×W×H): 1200×450×250mm
Product size: 400×200mm
Feed speed: 0-15m/min
Conveyer: roller chain conveyor
Max. conveyor load: 25kg
Machine dimensions (L×W×H): 1600×700×1520mm
Machine weight: 185kg
Power supply: 380V 50-60Hz
Power: 12kW
- Control panel uses programming system, 12V DC input, button switch and digital display;
- 3P circuit breaker is equipped to protect electrical devices, air volume can be flexibly adjusted by air flow control;
- Height adjustable bracket can be disassembled to accommodate to changing work environments;
- High temperature and wind resistant fabric is adopted to prevent operators form overheating while avoiding the risk of dirt or dust entering;
- Stainless steel guide rails reduce the abrasion of silicone rubber;
- Infrared quartz heating tube offers more stable heating effect;
